Stainless Steel Tube Compression Fittings

Stainless Steel Tube Compression Fittings

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).
Material is 316SS.

AN Bulkhead Unions

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/2" Tube x 1/2" Tube AN Bulkhead Union 316 Stainless Steel Tube/Compression Fittings Dimensions: E=.39 F=.94 G=.87 L1=2.19 L2=1.25 An=3/4x16 Price: $43.20

3/4" Tube x 3/4" Tube AN Bulkhead Union 316 Stainless Steel Tube/Compression Fittings Dimensions: E=.61 F=1.18 G=1.12 L1=2.71 L2=1.47 An=1-1/16x12 Price: $70.49

1" Tube x 1" Tube AN Bulkhead Union 316 Stainless Steel Tube/Compression Fittings Dimensions: E=.84 F=1.62 G=1.5 L1=3.16 L2=1.78 An=1-5/16x12 Price: $144.01

1/4" Tube x 1/4" Tube AN Bulkhead Union 316 Stainless Steel Tube/Compression Fittings Dimensions: E=.17 F=.63 G=.56 L1=1.83 L2=1.03 An=7/16x20 Price: $21.99

3/8" Tube x 3/8" Tube AN Bulkhead Union 316 Stainless Steel Tube/Compression Fittings Dimensions: E=.28 F=.75 G=.69 L1=1.96 L2=1.16 An=9/16x18 Price: $33.36

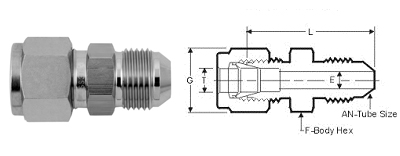

AN Unions

---

Technical Specifications:  Material under ASTM A-479 & ASTM A-182 Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent Safe and reliable performance from cryogenic temperatures to 380 Degree C Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/4" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.09 F=.5 G=.44 L=1.12 ANthrd=7/16x20 Price: $20.57

1/4" Tube x 1/4" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.17 F=.5 G=.56 L=1.19 ANthrd=7/16x20 Price: $24.80

5/16" Tube x 5/16" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.23 F=.56 G=.63 L=1.22 ANthrd=1/2x20 Price: $27.78

3/8" Tube x 1/4" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.17 F=.63 G=.69 L=1.27 ANthrd=7/16x20 Price: $28.60

3/8" Tube x 3/8" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.28 F=.63 G=.69 L=1.27 ANthrd=9/16x18 Price: $24.69

1/2" Tube x 1/2" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.39 F=.81 G=.87 L=1.41 ANthrd=3/4x16 Price: $33.96

3/4" Tube x 3/4" Tube AN Union 316 Stainless Steel Tube Compression Fittings Dimensions: E=.61 F=1.12 G=1.12 L=1.7 ANthrd=1-1/16x12 Price: $77.99

Back Ferrules

---

Technical Specifications:  Material under ASTM A-479 & ASTM A-182 Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent Safe and reliable performance from cryogenic temperatures to 380 Degree C Fittings have high vacuum capabilities & working pressures (PSI).

3/16" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $2.85

1/4" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $2.28

5/16" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $2.64

3/8" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $2.85

1/2" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $3.40

5/8" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $4.54

3/4" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $7.39

7/8" Tube Back Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Back Ferrule Price: $8.72

Bulkhead Adaptors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/4" Bulkhead Adapter 316 Stainless Steel Fittings Dimensions: E=.19 F=.63 G=.56 L=1.9 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Adaptor Price: $31.84

3/8" Tube x 3/8" Bulkhead Adapter 316 Stainless Steel Fittings Dimensions: E=.3 F=.75 G=.69 L=2.13 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Adaptor Price: $32.60

1/2" Tube x 1/2" Bulkhead Adapter 316 Stainless Steel Fittings Dimensions: E=.37 F=.94 G=.87 L=2.48 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Adaptor Price: $42.08

5/8" Tube x 5/8" Bulkhead Adapter 316 Stainless Steel Fittings Dimensions: E=.5 F=1.06 G=1 L=2.56 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Adaptor Price: $47.76

Bulkhead Female Connector

---

Technical Specifications:  Material under ASTM A-479 & ASTM A-182 Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent Safe and reliable performance from cryogenic temperatures to 380 Degree C Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" NPT Bulkhead Female Connector 316 Stainless Steel Fittings Dimensions: B=.41 E=.19 F1=.63 F2=.63 G=.56 L=1.56 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Female NPT Price: $32.60

1/4" Tube x 1/4" NPT Bulkhead Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F1=.75 F2=.75 G=.56 L=1.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Female NPT Price: $30.72

3/8" Tube x 1/4" NPT Bulkhead Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.28 F1=.75 F2=.75 G=.69 L=1.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Female NPT Price: $40.94

1/2" Tube x 3/8" NPT Bulkhead Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.41 F1=1 F2=1 G=.87 L=2.03 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Female NPT Price: $50.78

Bulkhead Male Connector

---

Technical Specifications:  Material under ASTM A-479 & ASTM A-182 Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent Safe and reliable performance from cryogenic temperatures to 380 Degree C Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.63 G=.56 L=1.65 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $20.66

1/4" Tube x 1/4" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.19 F=.63 G=.56 L=1.85 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $20.66

3/8" Tube x 1/4" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.3 F=.75 G=.69 L=1.97 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $31.07

3/8" Tube x 3/8" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.3 F=.75 G=.69 L=1.97 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $16.11

3/8" Tube x 1/2" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.75 E=.3 F=.87 G=.69 L=2.2 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $35.26

1/2" Tube x 3/8" NPT Bulkhead Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.37 F=.94 G=.87 L=2.09 Type: Stainless Steel Fittings Tube/Compression Fittings, Bulkhead Male NPT Price: $40.94

Caps

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube Cap 316 Stainless Steel Fittings Dimensions: F=.5 G=.56 L=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $10.63

5/16" Tube Cap 316 Stainless Steel Fittings Dimensions: F=.56 G=.63 L=.67 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $10.63

3/8" Tube Cap 316 Stainless Steel Fittings Dimensions: F=.63 G=.69 L=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $14.41

1/2" Tube Cap 316 Stainless Steel Fittings Dimensions: F=.81 G=.87 L=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $17.45

5/8" Tube Cap 316 Stainless Steel Fittings Dimensions: F=.94 G=1 L=.78 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $21.23

3/4" Tube Cap 316 Stainless Steel Fittings Dimensions: F=1.06 G=1.12 L=.84 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $26.13

7/8" Tube Cap 316 Stainless Steel Fittings Dimensions: F=1.18 G=1.25 L=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, Cap Price: $42.63

Female Branch Tees

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.41 E=.19 F=.56 G=.56 L1=1.54 L2=.77 L3=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $47.76

1/4" Tube x 1/4" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.69 G=.56 L1=1.76 L2=.88 L3=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $48.52

3/8" Tube x 1/4" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.3F=.81 G=.69L1=2.04 L2=1.02 L3=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $47.38

3/8" Tube x 3/8" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.3 F=.81 G=.69 L1=2.04 L2=1.02 L3=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $48.52

3/8" Tube x 1/2" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.78 E=.3 F=1 G=.69 L1=2.26 L2=1.13 L3=1.12 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $53.81

1/2" Tube x 1/4" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.37 F=.81 G=.87 L1=2.04 L2=1.02 L3=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $58.35

1/2" Tube x 3/8" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.37 F=.81 G=.87 L1=2.04 L2=1.02 L3=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $61.77

1/2" Tube x 1/2" NPT Female Branch Tee 316 Stainless Steel Fittings Dimensions: B=.78 E=.41 F=1 G=.87 L1=2.26 L2=1.13 L3=1.12 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $68.97

Female Connectors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/4" NPT Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.09 F=.75 G=.5 L=1.06 Type: Stainless Steel Fittings Tube/Compression Fittings, Female NPT Price: $17.05

3/16" Tube x 1/8" NPT Female Connector 316 Stainless Steel Fittings Dimensions: B=.41 E=.09 F=.56 G=.5 L=.91 Type: Stainless Steel Fittings Tube/Compression Fittings, Female NPT Price: $17.05

1/4" Tube x 1/8" NPT Female Connector 316 Stainless Steel Fittings Dimensions: B=.41 E=.19 F=.56 G=.56 L=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, Female NPT Price: $15.91

1/4" Tube x 1/4" NPT Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.75 G=.56 L=1.12 Type: Stainless Steel Fittings Tube/Compression Fittings, Female NPT Price: $17.45

1/4" Tube x 3/8" NPT Female Connector 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.87 G=.56 L=1.19 Type: Stainless Steel Fittings Tube/Compression Fittings, Female NPT Price: $18.95

Female Elbows

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/4" NPT Female Elbow 316 Stainless Steel Fittings Dimensions: B=.59 E=.09 F=.69 G=.44 L1=.82 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $30.31

3/16" Tube x 1/8" NPT Female Elbow 316 Stainless Steel Fittings Dimensions: B=.41 E=.09 F=.56 G=.5 L1=.74 L2=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $27.48

1/4" Tube x 1/8" NPT Female Elbow 316 Stainless Steel Fittings Dimensions: B=.41 E=.19 F=.56 G=.56 L1=.77 L2=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $28.43

1/4" Tube x 1/4" NPT Female Elbow 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.69 G=.56 L1=.88 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $29.58

1/4" Tube x 3/8" NPT Female Elbow 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.81 G=.56 L1=.96 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $33.36

Female Run Tees

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" NPT Female Run Tee 316 Stainless Steel Fittings Dimensions: B=.41 E=.19 F=.56 G=.56 L1=1.52 L2=.77 Type: Stainless Steel Fittings Tube/Compression Fittings, Run Tee NPT Price: $47.76

1/4" Tube x 1/4" NPT Female Run Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.19 F=.69 G=.56 L1=1.76 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Run Tee NPT Price: $48.52

3/8" Tube x 1/4" NPT Female Run Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.3 F=.69 G=.69 L1=1.9 L2=1.02 Type: Stainless Steel Fittings Tube/Compression Fittings, Run Tee NPT Price: $47.38

1/2" Tube x 1/4" NPT Female Run Tee 316 Stainless Steel Fittings Dimensions: B=.59 E=.41 F=.81 G=.87 L1=1.9 L2=1.02 Type: Stainless Steel Fittings Tube/Compression Fittings, Run Tee NPT Price: $57.99

Front Ferrules

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube Front Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Front Ferrule Price: $2.64

3/16" Tube Front Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Front Ferrule Price: $2.85

1/4" Tube Front Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Front Ferrule Price: $2.28

5/16" Tube Front Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Front Ferrule Price: $2.64

3/8" Tube Front Ferrule 316 Stainless Steel Fittings Type: Stainless Steel Fittings Tube/Compression Fittings, Front Ferrule Price: $2.85

Male Branch Tees

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" NPT Male Branch Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.44 G=.44 L1=1.34 L2=.7 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $37.90

1/8" Tube x 1/4" NPT Male Branch Tee 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.5 G=.44 L1=1.42 L2=.92 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $41.30

3/16" Tube x 1/8" NPT Male Branch Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.12 F=.44 G=.5 L1=1.4 L2=.7 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $38.66

1/4" Tube x 1/8" NPT Male Branch Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.5 G=.56 L1=1.54 L2=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $33.72

1/4" Tube x 1/4" NPT Male Branch Tee 316 Stainless Steel Fittings Dimensions: B=.56 E=.19 F=.5 G=.56 L1=1.54 L2=.92 Type: Stainless Steel Fittings Tube/Compression Fittings, Branch Tee NPT Price: $37.90

Male Connectors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" NPT Male Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.5 G=.5 L1=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, NPT Price: $13.27

1/8" Tube x 1/4" NPT Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.56 G=.5 L1=1.14 Type: Stainless Steel Fittings Tube/Compression Fittings, NPT Price: $13.27

3/16" Tube x 1/8" NPT Male Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.5 G=.5 L1=.97 Type: Stainless Steel Fittings Tube/Compression Fittings, NPT Price: $13.65

3/16" Tube x 1/4" NPT Male Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.56 G=.5 L1=1.17 Type: Stainless Steel Fittings Tube/Compression Fittings, NPT Price: $13.65

1/4" Tube x 1/8" NPT Male Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.56 G=.56 L1=1 Type: Stainless Steel Fittings Tube/Compression Fittings, NPT Price: $10.99

Male Elbows

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" NPT Male Elbow 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.44 G=.5 L1=.67 L2=.7 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $20.85

1/8" Tube x 1/4" NPT Male Elbow 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.5 G=.5 L1=.71 L2=.92 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $20.85

3/16" Tube x 1/8" NPT Male Elbow 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.5 G=.5 L1=.74 L2=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $21.99

3/16" Tube x 1/4" NPT Male Elbow 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.5 G=.5 L1=.74 L2=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $21.59

1/4" Tube x 1/8" NPT Male Elbow 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.5 G=.56 L1=.77 L2=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Elbow NPT Price: $22.73

Male Pipe Weld Connectors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" Male Pipe Weld Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.5 G=.5 L=.94 M=.41 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Price: $12.13

3/16" Tube x 1/8" Male Pipe Weld Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.5 G=.5 L=.97 M=.41 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Price: $12.89

1/4" Tube x 1/8" Male Pipe Weld Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.56 G=.56 L=1 M=.41 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Price: $12.89

1/4" Tube x 1/4" Male Pipe Weld Connector 316 Stainless Steel Fittings Dimensions: B=.56 E=.19F=.56G=.56 L=1.2 M=.54 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Price: $12.51

5/16" Tube x 1/8" Male Pipe Weld Connector 316 Stainless Steel Fittings Dimensions: B=.38 E=.2 F=.59 G=.63 L=1.05 M=.41 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Price: $16.31

Male Pipe Weld Elbows

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" Male Pipe Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.5 G=.56 L1=.77 L2=.75 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Elbow Price: $22.73

1/4" Tube x 1/4" Male Pipe Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.56 E=.19 F=.5 G=.56 L1=.77 L2=.92 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Elbow Price: $22.73

3/8" Tube x 1/4" Male Pipe Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.56 E=.28 F=.63 G=.69 L1=.9 L2=1 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Elbow Price: $26.53

1/2" Tube x 1/2" Male Pipe Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.75 E=.41 F=.81 G=.87 L1=1.02 L2=1.3 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Pipe Weld Elbow Price: $36.00

Male Run Tees

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI)

1/8" Tube x 1/8" NPT Male Run Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.09 F=.44 G=.44 L1=1.37 L2=.67 L3=.7 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Run Tee NPT Price: $38.28

1/8" Tube x 1/4" NPT Male Run Tee 316 Stainless Steel Fittings Dimensions: B=.56 E=.09 F=.5 G=.44 L1=1.63 L2=.71 L3=.92 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Run Tee NPT Price: $41.30

3/16" Tube x 1/8" NPT Male Run Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.12F=.5 G=.5 L1=1.41 L2=.71 L3=.7 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Run Tee NPT Price: $38.66

1/4" Tube x 1/8" NPT Male Run Tee 316 Stainless Steel Fittings Dimensions: B=.38 E=.19 F=.5 G=.56 L1=1.51 L2=.77 L3=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Male Run Tee NPT Price: $33.72

Nuts

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube Nut 316 Stainless Steel Fittings Dimensions: G=.44 L=.51 Type: Stainless Steel Fittings Tube/Compression Fittings, Nut Price: $3.40

3/16" Tube Nut 316 Stainless Steel Fittings Dimensions: G=.5 L=.51 Type: Stainless Steel Fittings Tube/Compression Fittings, Nut Price: $3.40

1/4" Tube Nut 316 Stainless Steel Fittings Dimensions: G=.56 L=.54 Type: Stainless Steel Fittings Tube/Compression Fittings, Nut Price: $2.85

5/16" Tube Nut 316 Stainless Steel Fittings Dimensions: G=.63 L=.56 Type: Stainless Steel Fittings Tube/Compression Fittings, Nut Price: $3.40

Plugs

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube Plug 316 Stainless Steel Fittings Dimensions: G=.44 Type: Stainless Steel Fittings Tube/Compression Fittings, Plug Price: $8.32

3/16" Tube Plug 316 Stainless Steel Fittings Dimensions: G=.5 Type: Stainless Steel Fittings Tube/Compression Fittings, Plug Price: $8.72

1/4" Tube Plug 316 Stainless Steel Fittings Dimensions: G=.56 Type: Stainless Steel Fittings Tube/Compression Fittings, Plug Price: $5.72

5/16" Tube Plug 316 Stainless Steel Fittings Dimensions: G=.63 Type: Stainless Steel Fittings Tube/Compression Fittings, Plug Price: $7.58

Port Connectors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" Port Connector 316 Stainless Steel Fittings Dimensions: B=.42 E=.09 L=.88 M=.24 Type: Stainless Steel Fittings Tube/Compression Fittings, Port Connector Price: $6.08

1/4" Tube x 1/4" Port Connector 316 Stainless Steel Fittings Dimensions: B=.62 E=.19 L=.97 M=.37 Type: Stainless Steel Fittings Tube/Compression Fittings, Port Connector Price: $7.18

5/16" Tube x 5/16" Port Connector 316 Stainless Steel Fittings Dimensions: B=.79 E=.25 L1=.02 M=.43 Type: Stainless Steel Fittings Tube/Compression Fittings, Port Connector Price: $8.32

3/8" Tube x 3/8" Port Connector 316 Stainless Steel Fittings Dimensions: B=.8 E=.3 L1=.03 M=.5 Type: Stainless Steel Fittings Tube/Compression Fittings, Port Connector Price: $8.91

1/2" Tube x 1/2" Port Connector 316 Stainless Steel Fittings Dimensions: B=1.02 E=.39 L1=.41 M=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Port Connector Price: $10.63

Reducers

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 3/16" Reducer 316 Stainless Steel Fittings Dimensions: E=.09 F=.44 G=.44 L=1.12 Type: Stainless Steel Fittings Tube/Compression Fittings, Reducer Price: $13.27

1/8" Tube x 1/4" Reducer 316 Stainless Steel Fittings Dimensions: E=.09 F=.44 G=.44 L=1.16 Type: Stainless Steel Fittings Tube/Compression Fittings, Reducer Price: $14.03

1/8" Tube x 3/8" Reducer 316 Stainless Steel Fittings Dimensions: E=.09 F=.44 G=.44 L=1.25 Type: Stainless Steel Fittings Tube/Compression Fittings, Reducer Price: $14.77

1/8" Tube x 1/2" Reducer 316 Stainless Steel Fittings Dimensions: E=.09 F=.56 G=.44 L=1.48 Type: Stainless Steel Fittings Tube/Compression Fittings, Reducer Price: $16.31

Reducing Port Connectors

---

Technical Specifications:

Material under ASTM A-479 & ASTM A-182
Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
Safe and reliable performance from cryogenic temperatures to 380 Degree C
Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/8" Reducing Port Connector 316 Stainless Steel Fittings Dimensions: B1=.53 B2=.13 E=.09 L=.89 M=.35 Price: $24.96

3/8" Tube x 1/8" Reducing Port Connector 316 Stainless Steel Fittings Dimensions: B1=.53 B2=.14 E=.09 L=.91 M=.5 Price: $9.87

3/8" Tube x 1/4" Reducing Port Connector 316 Stainless Steel Fittings Dimensions: B1=.62 B2=.13 E=.18 L=.98 M=.52 Price: $29.61

1/2" Tube x 1/4" Reducing Port Connector 316 Stainless Steel Fittings Dimensions: B1=.62 B2=.14 E=.18 L=1.15 M=.59 Price: $12.13

Socket Weld Elbows

---

• Material under ASTM A-479 & ASTM A-182.
• Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent.
• Safe and reliable performance from cryogenic temperatures to 380 Degree C.
• Fittings have high vacuum capabilities & working pressures (PSI).

1/4" Tube x 1/4" Socket Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.31 E=.19 F=.5 G=.56 L=.77 M=.5 Type: Stainless Steel Fittings Tube/Compression Fittings, Socket Weld Elbows Price: $22.73

3/8" Tube x 3/8" Socket Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.38 E=.28 F=.63 G=.69 L=.91 M=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Socket Weld Elbows Price: $26.53

1/2" Tube x 1/2" Socket Weld Elbow 316 Stainless Steel Fittings Dimensions: B=.5 E=.41 F=.81 G=.87 L=1.02 M=.81 Type: Stainless Steel Fittings Tube/Compression Fittings, Socket Weld Elbows Price: $36.00

Union Crosses

---

• Technical Specifications:

  Material under ASTM A-479 & ASTM A-182
  Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
  Safe and reliable performance from cryogenic temperatures to 380 Degree C
  Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube Union Cross 316 Stainless Steel Fittings Dimensions: E=.09 F=.37 G=.44 L1=1.24 L2=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Cross Price: $50.02

1/4" Tube Union Cross 316 Stainless Steel Fittings Dimensions: E=.19 F=.5 G=.56 L1=1.54 L2=.77 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Cross Price: $50.02

3/8" Tube Union Cross 316 Stainless Steel Fittings Dimensions: E=.37 F=.81 G=.87 L1=2.04 L2=.98 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Cross Price: $64.43

1/2" Tube Union Cross 316 Stainless Steel Fittings Dimensions: E=.3 F=.69 G=.69 L1=1.88 L2=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Cross Price: $90.96

5/16" Tube Union Cross 316 Stainless Steel Fittings Dimensions: E=.25 F=.63 G=.63 L1=1.76 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Cross Price: $56.85

Union Elbows

---

• Technical Specifications:

  Material under ASTM A-479 & ASTM A-182
  Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent
  Safe and reliable performance from cryogenic temperatures to 380 Degree C
  Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube x 1/8" Tube Union Elbow 316 Stainless Steel Fittings Dimensions: E=.09 F=.37 G=.44 L=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Elbow Price: $25.03

3/16" Tube x 3/16" Tube Union Elbow 316 Stainless Steel Fittings Dimensions: E=.09 F=.5 G=.5 L=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Elbow Price: $26.53

1/4" Tube x 1/4" Tube Union Elbow 316 Stainless Steel Fittings Dimensions: E=.19 F=.5 G=.56 L=.77 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Elbow Price: $12.51

5/16" Tube x 5/16" Tube Union Elbow 316 Stainless Steel Fittings Dimensions: E=.25 F=.56 G=.63 L=.84 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Elbow Price: $28.43

3/8" Tube x 3/8" Tube Union Elbow 316 Stainless Steel Fittings Dimensions: E=.3 F=.69 G=.69 L=.94 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Elbow Price: $32.22

Union Tees

---

• Material under ASTM A-479 & ASTM A-182.
• Tubing material is 316SS annealed seamless tubing ASTM A-213 or equivalent.
• Safe and reliable performance from cryogenic temperatures to 380 Degree C.
• Fittings have high vacuum capabilities & working pressures (PSI).

1/8" Tube Union Tee 316 Stainless Steel Fittings Dimensions: E=.09 F=.37 G=.44 L1=1.24 L2=.62 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Tee Price: $8.90

3/16" Tube Union Tee 316 Stainless Steel Fittings Dimensions: E=.09 F=.5 G=.5 L1=1.48 L2=.74 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Tee Price: $37.90

1/4" Tube Union Tee 316 Stainless Steel Fittings Dimensions: E=.19 F=.5 G=.56 L1=1.54 L2=.77 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Tee Price: $34.12

5/16" Tube Union Tee 316 Stainless Steel Fittings Dimensions: E=.25 F=.63 G=.63 L1=1.76 L2=.88 Type: Stainless Steel Fittings Tube/Compression Fittings, Union Tee Price: $39.04
