India's Most Experience Manufacturers and Suppliers of ANSI B16.5 Orifice Flanges. Stainless Steel Orifice Flanges Manufacturers In India,
Veritas Stainless is India’s leading Manufacturers, Importers, Stockholders, Exporters, Distributors, Traders, Wholesalers and Suppliers of Orifice Flanges In Stainless Steel, Alloy Steel, Carbon Steel. Carbon Steel Orifice Flanges manufacturers, Alloy Steel Orifice Flanges manufacturers, Inconel 625 Orifice Flanges, Monel Orifice Flanges, Hastelloy Orifice Flanges
Discounted Price in India of Orifice Flanges. a105 Orifice Flanges, a182 Orifice Flanges as per asme / ansi B16.5 Orifice flanges, ansi B16.47 Orifice flanges, 304 Orifice Flanges, 316 Orifice Flanges, Din Orifice flanges, jis Orifice flanges & uni Orifice flanges Standards.high quality Orifice flange like Class 150 Orifice Flanges, Class 300 Orifice Flanges, Class 600 Orifice Flanges, Class 900 Orifice Flanges, Class 1500 Orifice Flanges & Class 2500 Orifice Flanges Suppliers in india
 |

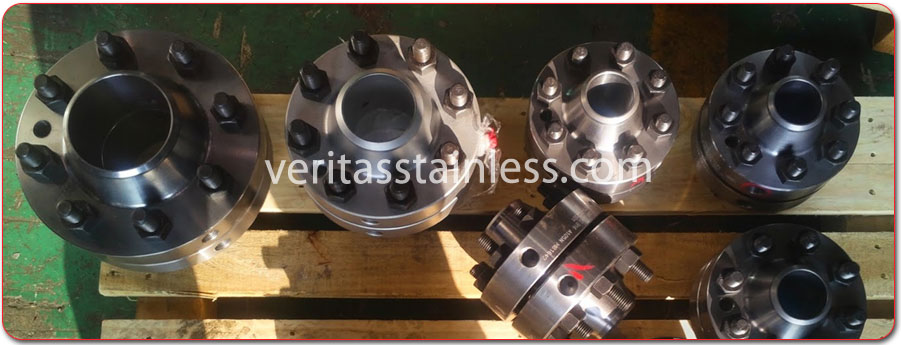

Orifice Flanges
Veritas is a flagship company of Universal Group based in Mumbai, India. Veritas is engagedin Manufacturer of Steel Fitting, Flange & Fasteners. We also stock Pipe, Tubes, Plates,Sheets, Bars, Valve & other customized Engineering Product in various steel grade, specialized in Stainless Steel, High Nickel Alloys, Alloy Steel & Carbon Steel.
We are the recognized manufacturer of the Orifice Flanges manufacturers. We provide you a variety of Orifice Flanges that are going to be praised worldwide for its high level of strength. Our product is highly durable and can also easily fit to any dimension due to the availability of different shapes and sizes. Moreover You would get amazed after knowing that all the sorts of buttweld fittings are present at highly competitive price. Also offers seamless Orifice Flanges, stainless steel Orifice Flanges, industrial Orifice Flanges, Carbon Steel Orifice Flanges, duplex steel Orifice Flanges and Alloy steel Orifice Flanges.
Available Grades In Orifice Flanges at Discounted Price:
Orifice Flanges Specification
| Product Type | Orifice Flanges |
|---|---|
| Size | ½” (15 NB) to 48″ (1200NB) |
| Stainless Steel Orifice Flanges | ASTM A 182, A 240, F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Alloy Steel Orifice Flanges | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Carbon Steel Orifice Flanges | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 |
| Duplex Steel Orifice Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Standard Specifications | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673B.S : BS4504 , BS4504, BS1560, BS10 |
| Specialize | As per drawing |
| Pressure Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75 |
| Flanges Forms & Types | Orifice Flanges, Weld Neck Flanges – WNRF, Socket Weld Flanges – SWRF, Slip On Raise Face – SORF, Blind Raise Face – BLRF, Spectacle Blind, Ring Joint, Large Dia Flanges, Girth Flange, Lap Joint Flanges, Screwed (Threaded) Flanges, Long Weld Neck Flanges, Reducing. |
ASME/ ANSI B16.5 Orifice Pipe Flanges Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
|---|---|---|
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) |
Typical Stainless Steel 18/8 Grade Designations:
|
ASTM
|
BS
|
DIN
|
EURONORM
|
|---|---|---|---|
|
304
|
304S15
|
X5 Cr Ni 18 10
|
1.4301
|
|
304L
|
304S11
|
X2 Cr Ni 18 9
|
1.4307
|
|
316
|
316S31
|
X5 Cr Ni Mo 17 12 2
|
1.4401
|
|
316L
|
316S11
|
X2 Cr Ni Mo 17 13 2
|
1.4404
|
|
321
|
321S31
|
X6 Cr Ni 18 10
|
1.4541
|
|
316Ti
|
320S31
|
X6 Cr Ni Mo Ti 17 12 2
|
1.4571
|
|
SMO
|
254SMO
|
X1 Cr Ni Mo Cu N 20 18 7
|
1.4547
|
Manufacturers And Suppliers Of Different Types Of Flanges At Discounted Price
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
ASME B16.36 Orifice Flanges Dimensions

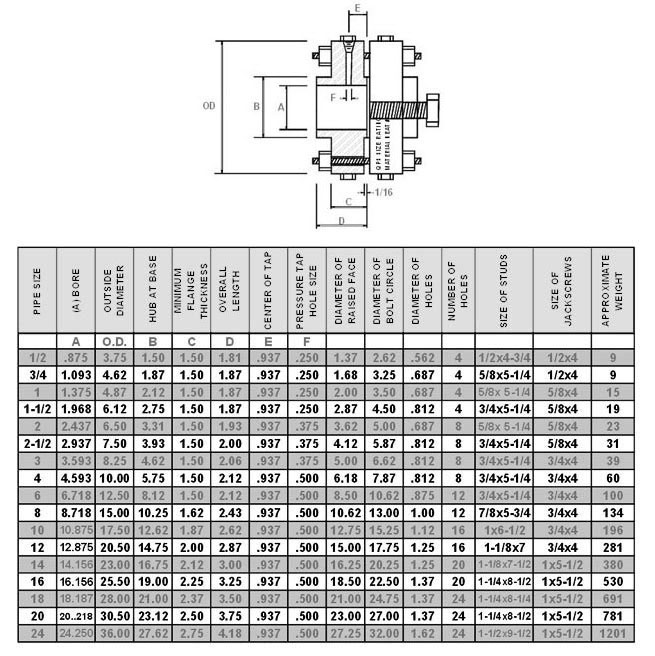

Dimensional Chart of class 300# RFS0 Orifice Flange Union

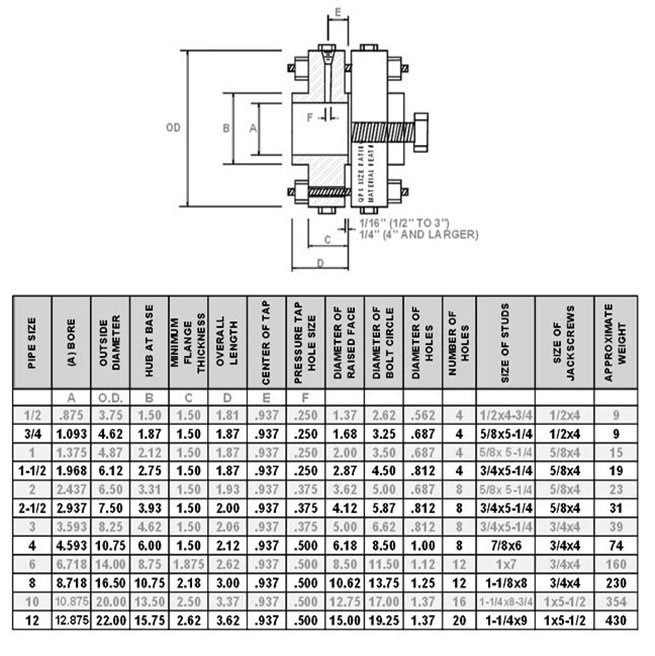

Dimensional Chart of class 600# RFS0 Orifice Flange Union
We Stock All Different Types Of Orifice Flanges at best price
|
|
ANSI/ASME steel flanges
|
|
EN/PED Steel Flanges
|
|
BS Steel Flanges
|
|
JIS Steel Flanges
|
|
Flange Standard
|
|
Latest Price List of Orifice Flanges
|
|
